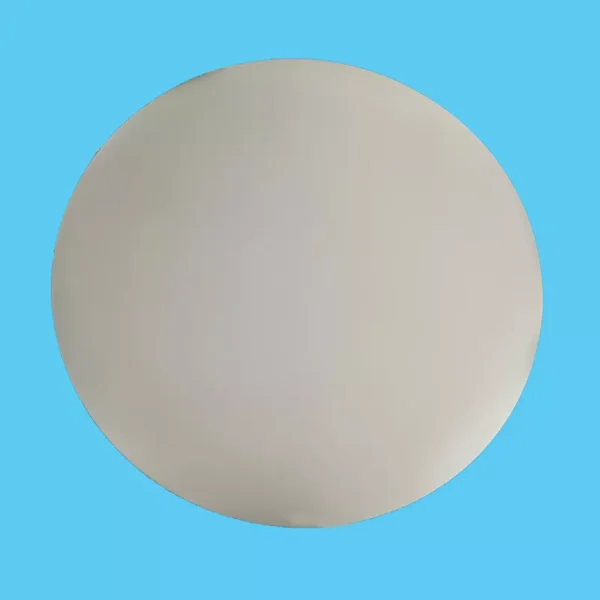

Aluminum Nitride (AlN) Wafers

Wafer function and design intent

An AlN wafer should be specified according to its role in the system, not only by material name. Explain whether it serves as a substrate, insulating carrier, thermal interface element, optical or vacuum component, or another defined function. State the neighboring materials, mounting method, active area and any regions that must remain unprocessed or free from contamination.

The source topic spans several application groups, but those groups impose different priorities. A semiconductor carrier may emphasize pattern registration and cleanliness, while a laser or vacuum component may require different edge, surface or handling controls. Identify the actual equipment interface and use environment so the quotation addresses the correct wafer architecture rather than a generic disk.

Geometry and edge definition

Provide the wafer outline, nominal diameter or other plan dimensions, thickness map, orientation features, edge profile, holes and cutouts where applicable. Include datums and drawing zones for critical surfaces. If the geometry is still exploratory, request a manufacturability review and identify which dimensions may change before release, instead of presenting provisional values as fixed requirements.

Edges often determine handling reliability and fit within carriers or fixtures. Describe edge exclusion, chamfers, notches, flats, corner transitions and allowable chips using the buyer’s inspection language. Ask the supplier to distinguish drawing-defined limits from process capability observations, since a general statement about precision does not establish acceptance for the specific wafer design.

Surface, cleanliness and processing state

State whether the wafer is supplied as-fired, ground, lapped, polished, coated, patterned or otherwise processed. Define surface texture, visual criteria, contamination controls and the measurement method for each required characteristic. If one face differs from the other, identify orientation and functional purpose. Avoid combining several finishing states under one product description when they require different inspection plans.

Clean handling requirements should be connected to the next manufacturing step. Tell the supplier whether the wafer enters vacuum equipment, semiconductor processing, optical assembly, metallization or another controlled environment. Include packaging and protective-film expectations where relevant, while recognizing that cleanliness limits, packaging methods and certification records must be agreed for the specific project.

Thermal, electrical and interface review

AlN wafer designs frequently sit between thermal, electrical and mechanical requirements, but the balance is application-specific. Explain heat-flow direction, contact materials, insulation intent, voltage exposure if applicable, clamping method and thermal cycling. Request the supplier to review interfaces and assumptions without inserting unverified conductivity, expansion, dielectric or temperature values into the quotation.

The mounting scheme can affect wafer stress and measured performance. Show support points, adhesive or metallization areas, fastener locations, pressure distribution and clearance to surrounding hardware. If the wafer is later processed or bonded, identify that downstream operation and its handling limits. This enables the RFQ to compare substrate supply with the complete integration risk.

Inspection and RFQ comparison

A strong inspection plan may cover dimensions, thickness variation, flatness, edge condition, surface defects, orientation features, cleanliness and any application-specific pattern or coating. Define the sampling basis, measurement locations, reporting format and treatment of nonconforming areas. Do not assume a material designation alone establishes purity, electrical behavior, thermal performance or certification.

For comparable quotations, provide the drawing revision, process state, annual or project quantity context, packaging needs and required technical records. Ask respondents to list exclusions, proposed inspection methods, development samples and change-control conditions. Keep price, stock, minimum order quantity and lead time as explicit commercial responses rather than implied properties of the wafer.

Questions Before You Inquire

What is the most important information in an AlN wafer RFQ?

Identify the wafer function, outline, thickness scheme, edge details, surface state, cleanliness requirements, mounting interface, downstream processing and inspection criteria. Include controlled drawings and revision information. If thermal, electrical or purity requirements are not finalized, state them as open engineering items rather than assumed specifications.

Can one AlN wafer specification cover semiconductor and laser applications?

Not automatically. Those applications may differ in surface condition, cleanliness, edge handling, mounting, patterning and inspection. Use the application label only as context, then define the actual equipment interface and acceptance requirements. A shared base geometry may be possible, but it requires project-specific review.

Should the RFQ request polished or as-fired wafers?

Choose the processing state based on the next operation and the required functional surfaces. State whether the wafer will be ground, lapped, polished, coated, patterned or supplied in another condition. If uncertain, request clearly separated options with their inspection scope and downstream implications.

Does the AlN material name establish thermal or electrical performance?

No. Material family alone does not establish a particular conductivity, dielectric behavior, purity, flatness or temperature capability. Those characteristics depend on the selected grade, processing, geometry, measurement method and application. Define each required value and its verification method in the drawing or technical specification.
