The tube’s length, internal structure, openings, wall transitions and mounting points should be defined together with its environment. Buyers should ask for material and process evidence, dimensional inspection and handling guidance that reflect the complete assembly, not only the visible tube profile.
Key Inquiry Requirements

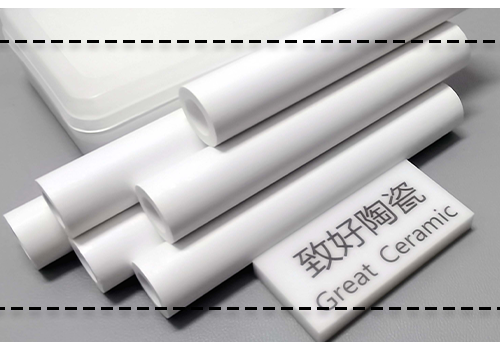

Understanding the Structured Tube
A long structured tube is not adequately described by outside diameter and length alone. Internal passages, stepped sections, windows, ribs, slots, end features or integrated shoulders may control flow, shielding, alignment or assembly. The RFQ should identify each functional region and show how the tube is supported along its length.
Start with an assembly drawing and a sectioned component drawing. Mark the working bore, protected zones, insertion depth, end orientation and any surfaces that must remain accessible. If the tube is installed vertically or horizontally, explain the support condition so suppliers can consider sag, contact stress and handling during inspection.
Boron Nitride Material Definition
Boron nitride is the stated material family, while the required grade, density, texture and manufacturing route remain application decisions. Ask suppliers to identify the proposed material, forming process, finishing steps and any joining or impregnation used. These details can influence machinability, surface character, porosity and behavior in the intended environment.
Provide the atmosphere, temperature range, pressure conditions, electrical surroundings and exposure to powders, vapors or reactive species. Avoid relying on generic claims such as high-temperature or clean performance. Instead, request data relevant to the actual duty and identify which values are guaranteed, typical, calculated or subject to validation.
Long-Form Geometry and Tolerances
Long tubular parts can be sensitive to accumulated dimensional variation, runout and local wall changes. The drawing should define straightness, concentricity, coaxiality, wall thickness, bore continuity and end-face relationships where those features affect assembly. Use datums that reflect how the component is actually located, supported and inspected.
Structured details deserve their own enlarged views and tolerance notes. Specify minimum radii, transition geometry, slot widths, corner conditions and allowable edge damage if these features influence stress or clearance. If machining marks or directional texture matter, state the requirement by surface rather than applying one broad note to every area.
Cleanliness, Handling and Inspection
Clean performance depends on the application, preparation and handling chain. Tell suppliers whether the tube enters a vacuum, furnace, chemical environment or controlled assembly area, and define cleaning agents, packaging materials and visual acceptance criteria. If particles, residue or fiber shedding are concerns, include the inspection method and sampling plan in the RFQ.
Inspection should cover both the long-form envelope and the structured internal profile. Request dimensional reports for critical sections, visual checks for chips and cracks, and a clear method for confirming blocked passages or inaccessible features. Discuss whether inspection requires a gauge, sectioned sample, optical method or other agreed technique before production begins.
Building a Comparable RFQ
A useful inquiry combines the model, revision, drawings, assembly context, duty cycle, annual demand assumptions and documentation needs. Ask bidders to state manufacturing limitations, minimum feature considerations, support assumptions, inspection access and recommended design adjustments. If the geometry is new, request a manufacturability review before final quotation.
When comparing offers, separate material evidence, geometry capability, inspection coverage, packaging and change control. Confirm what is included in the quoted scope and what requires customer approval. A prototype or first-article stage can be used to verify fit, profile continuity and handling before the design is released for recurring sourcing.
Questions Before You Inquire
What makes a long structured tube different from a plain sleeve?
Its internal and external features may serve alignment, shielding, flow, support or access functions. Those details can control manufacturability and inspection. The RFQ should show sections and enlarged views rather than relying on a single outside-diameter and length description.
Which environmental details should be included?
State atmosphere, pressure, temperature range, exposure to chemicals or powders, electrical surroundings, cleaning process and packaging conditions. These details help suppliers propose an appropriate boron nitride grade and identify evidence needed for the intended service environment.
How should wall thickness be specified?
Define nominal and minimum wall requirements by region, especially near holes, slots, shoulders and transitions. Use section views and datums where necessary. If local thinning, machining marks or edge conditions could affect function, give separate criteria instead of one generalized tolerance.
What inspection records are useful?
Request dimensional results for critical envelope and internal features, plus visual checks for cracks, chips, blocked passages and unacceptable residue. The report should identify the drawing revision, measurement method and sampling basis. Agree early on how inaccessible geometry will be verified.
Send a Clear Component Brief
Share your drawing, quantity and application with Porcecore. Mark the requirements that are fixed and the questions that remain open.
