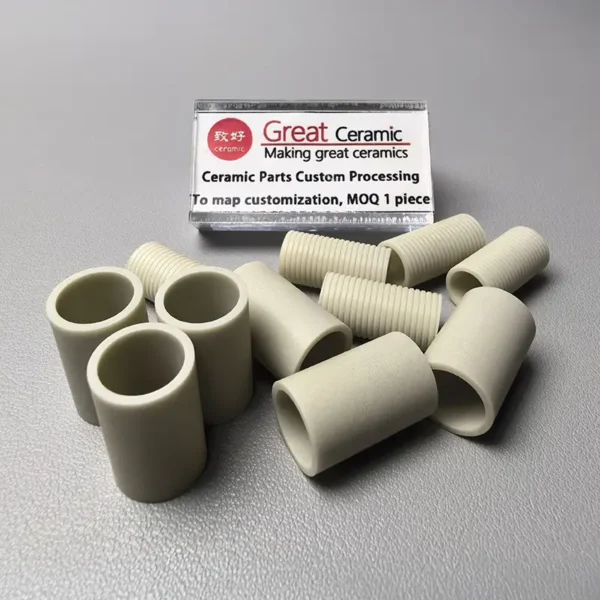

Aluminum Nitride Ceramic Threaded Pipe

Threaded pipe definition

A threaded ceramic pipe should be drawn as a complete interface, not specified only by nominal diameter. Show internal or external thread location, pitch or thread form, major and minor dimensions, start and runout, thread length, bore, wall thickness and end geometry. If the thread is custom, include a profile section and a mating model so fit is unambiguous.

Identify datums for the bore, thread axis and end faces, then state which relationships control assembly. Ceramic threads may require careful attention to lead-in, flank contact and handling, particularly when mating hardware is metal or another brittle component. Define whether the part is intended for hand assembly, controlled torque, adhesive retention or another installation method.

Material role and service environment

Aluminum nitride should be evaluated against the pipe’s actual role and environment. Explain whether the component is primarily structural, electrically insulating, thermally coupled, protective or a combination. Describe surrounding materials, contact pressure, heat sources, atmosphere, vacuum or fluid exposure, and any cleaning or processing steps that occur before installation.

Request proposed material information relevant to the application, such as grade identification, processing condition and available evidence. Do not infer a conductivity, insulation, temperature or chemical limit from the material family alone. The buyer should establish which properties are design inputs, which are verification items and which are simply useful comparison data.

Thread, sealing and assembly control

The thread may locate, retain, compress or transfer load, and each purpose needs different drawing notes. State whether sealing occurs on the thread, an end face, a separate gasket or another interface. Include the mating thread material, lubrication or dry-assembly condition, torque method and any anti-rotation feature so suppliers can assess risks beyond nominal thread fit.

If the pipe is tightened against a shoulder or washer, show the contact width and perpendicularity requirements. For a fragile ceramic component, define handling limits and allowable thread damage at the functional flanks. Consider requesting assembly trials with representative hardware, since a gauge check alone may not reveal torque, seizure, leakage or alignment problems.

Thermal and electrical inspection

Where the pipe participates in heat transfer or electrical isolation, connect each requirement to a measurement method and use condition. State the relevant contact surfaces, thermal path, voltage or isolation test arrangement and conditioning sequence when these are part of qualification. Avoid broad performance language unless the engineering team has established a controlled acceptance criterion.

Dimensional inspection should cover thread geometry, bore, wall thickness, axis alignment, end squareness and surface defects. Add visual inspection for cracks, chips and damage at the thread lead-in and flanks. If non-destructive examination, electrical testing or thermal testing is required, define its scope and reporting format before suppliers quote the work.

RFQ package and validation

A complete enquiry includes the controlled drawing, thread standard or profile, mating hardware, assembly method, service environment, quantity, packaging and inspection expectations. Add a three-dimensional model for unusual external forms, but make the drawing the governing document. Identify whether the pipe is a prototype, replacement, qualification part or repeat production component.

Ask each supplier to list assumptions, proposed process route, thread inspection method, material identification and sample responsibilities. Compare quotations on equivalent geometry and evidence rather than headline material claims. Porcecore’s page is an RFQ guide only; it does not establish stock, standard thread sizes, certifications, ownership of production equipment or guaranteed thermal and electrical performance.

Questions Before You Inquire

What thread details are required for an aluminum nitride ceramic pipe?

State whether the thread is internal or external, then provide thread form, pitch, nominal dimensions, length, runout, lead-in, bore and wall thickness. A profile section and mating model are valuable for custom threads. Also define datums, assembly method and which flank or face relationships are functional.

Can a standard metal thread specification be used unchanged?

It may be a starting reference, but ceramic assembly needs review of clearance, lead-in, flank contact, torque and damage control. Confirm the mating material and installation method, then validate fit with representative parts. The drawing should identify any ceramic-specific edge, handling or inspection requirements.

How should thermal or insulation claims be verified?

Tie each requirement to a defined test fixture, conditioning sequence, contact arrangement and measurement method. State the acceptance basis and reporting needs before quotation. Material-family descriptions are not substitutes for application validation, especially when interfaces, atmosphere, voltage or heat paths affect the result.

What defects deserve special attention on threaded ceramic parts?

Inspect thread lead-ins, flanks, runouts, bore transitions and end faces for cracks, chips, distortion and contamination. Separate functional damage from cosmetic marks and define inspection zones. Assembly trials with the intended hardware can reveal torque, alignment or sealing problems that dimensional checks alone may miss.
