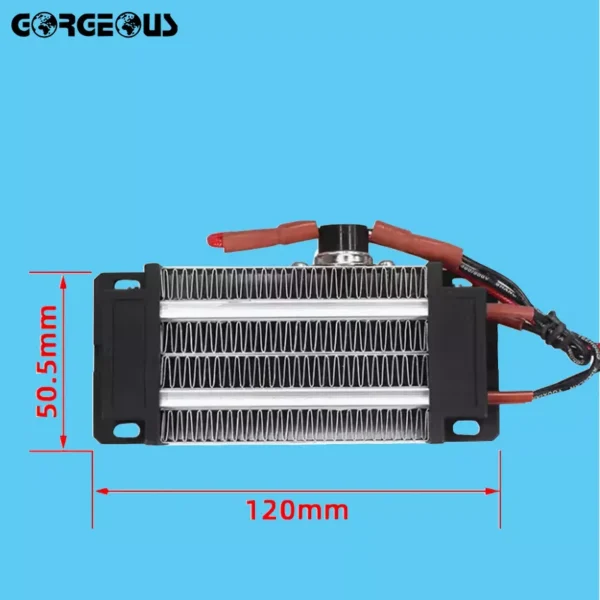

SiC Ceramic Heating Elements

Define the heating element geometry

A silicon carbide heating element should be specified through its complete geometry rather than a product name alone. Include the heated length, inactive sections, section profile, bends, terminals, holes, slots and any clearance-sensitive features on the drawing. Show datum references and the intended orientation inside the furnace, because support spacing and radiative exposure can affect how the element is evaluated and integrated.

For replacement or new-build work, identify the surrounding arrangement as well as the element itself. A buyer should show adjacent elements, refractory openings, shields, clamps and access direction where these influence fit. If the design includes multiple element shapes, separate them by drawing revision and call out which dimensions are functional, which are reference-only and which require inspection reporting.

Set the electrical and thermal brief

The RFQ should state the intended electrical interface, including connection concept, lead arrangement, supply assumptions and any restrictions imposed by the control system. Do not rely on a nominal heater label to communicate the load case. Provide the available circuit information, duty pattern, ramping expectations and control method so the proposed element can be reviewed within the actual assembly.

Thermal context is equally important. Describe the process atmosphere, chamber arrangement, exposure to vapours or powders, heating and cooling pattern, and any contact with fixtures. The buyer should distinguish process requirements from assumptions about the ceramic. This lets suppliers identify missing design inputs and compare candidate constructions without turning an unverified source statement into a guaranteed operating claim.

Compare construction and interfaces

Useful comparisons include element cross-section, terminal construction, joining details, surface appearance and the consistency of repeated features. Ask how critical dimensions will be measured and how the supplier will identify visible damage, chips, cracks or irregularities before release. These questions are more informative than comparing catalogue descriptions that omit the interfaces controlling installation.

Connection areas deserve special attention because they often determine serviceability. Provide the clamp, busbar, connector or feedthrough concept and identify materials that may touch the element. If a protective sleeve, ceramic support or transition piece is required, include its position and clearance in the drawing package. A clear interface definition reduces the risk of receiving a technically plausible element that cannot be installed.

Plan inspection around the drawing

Inspection should follow the features that matter to the furnace build. Request dimensional checks for heated length, terminal spacing, profile, hole location and other drawing-defined characteristics, with the acceptance method agreed before production. Where appearance matters, define the viewing conditions and the types of surface imperfection that require review rather than using broad language such as premium quality.

Traceability can be organized around the RFQ and drawing revision. State whether the quotation should include inspection records, material identification, photographs, packing controls or a sample approval step. These documents do not replace technical validation, but they give engineering and maintenance teams a consistent basis for receiving inspection and future replacement orders.

Build a complete RFQ package

A useful inquiry for SiC ceramic heating elements combines the part drawing with the furnace sketch, installation quantity, electrical information, atmosphere description and expected duty cycle. Include the application stage, whether the request concerns development or replacement, and any known failure history. If the design is still provisional, label assumptions clearly so they can be challenged during technical review.

Ask suppliers to identify exclusions, clarification points and any geometry they cannot responsibly interpret from the available documents. The quotation should be compared on technical fit, inspection scope, packaging and communication of limitations, not only on unit wording. A disciplined RFQ allows the heating element to be assessed as one part of a controlled thermal system.

Questions Before You Inquire

What drawings should accompany an SiC heating element inquiry?

Provide the element outline with all heated and inactive zones, terminal details, supports, datum references and critical dimensions. Add a furnace or kiln layout showing orientation, spacing and access. Electrical information, atmosphere, duty pattern and any replacement history help a supplier identify missing inputs before preparing a quotation.

Should the operating temperature be specified as a single number?

A single temperature is rarely enough for technical review. Include the process range or profile, heating and cooling pattern, atmosphere, load arrangement and control method. These factors influence how the element is integrated and compared. Any temperature limit or expected life should be treated as application-specific unless formally substantiated.

How can buyers compare quotations for these elements?

Compare drawing compliance, electrical interfaces, support compatibility, inspection coverage, documentation, packing and stated exclusions. Confirm that each quotation addresses the same revision and duty assumptions. A lower apparent price may not represent equivalent scope if terminal details, inspection records or clarification work are omitted.

Can Porcecore quote from a sample alone?

A sample can support identification, but it may not reveal hidden dimensions, material history, electrical duty or installation constraints. For a reliable RFQ, provide a controlled drawing or measured sample package together with application information. The supplier should flag uncertainties rather than infer critical requirements from appearance alone.
