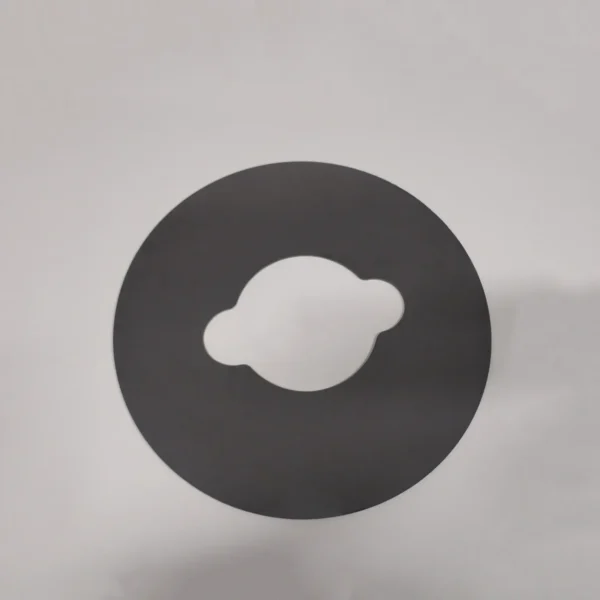

Silicon Nitride Ceramic Discs

Disc geometry should begin with the drawing

A silicon nitride disc may be a simple round plate, but its production risks often sit in the details. The drawing should identify outside diameter, thickness, holes, slots, recesses, chamfers, radii and any asymmetric features. State which surfaces establish the datums and which edges contact adjoining parts. This prevents a nominal disc description from hiding the geometry that actually controls fit, alignment or assembly.

For repeated parts, include a complete drawing revision, units, projection method and clearly marked critical characteristics. If the disc interfaces with a clamp, electrode, shaft, sensor or housing, show the mating envelope and installation direction. A neutral CAD file can support review, but it should not replace the controlled drawing. Buyers should also identify whether dimensions apply before or after finishing, coating or metallization, if those operations are required.

Select the material around the duty

Silicon nitride is a material family rather than one universal specification. The RFQ should describe the working environment, including contact materials, mechanical loading, thermal cycling, atmosphere, fluid exposure and any electrical role. Explain whether the disc is intended as a structural separator, wear-facing element, insulating component, positioning surface or another function. These details help suppliers recommend a relevant grade without assuming unrequested property values.

Where performance depends on a particular material condition, ask suppliers to state the proposed grade, forming route and applicable material documentation. Compare the supplied information against the actual duty rather than selecting on a short material label alone. If the buyer has internal acceptance limits, list them explicitly and separate mandatory requirements from preferred characteristics. This makes technical deviations visible before quotation and avoids unsupported assumptions about composition or performance.

Thermal and mechanical interfaces need definition

A disc can experience uneven restraint even when its outline is perfectly circular. Describe clamping locations, fastener patterns, contact widths, sliding allowances and expected assembly sequence. Include any thermal gradients, repeated heating and cooling, impact exposure or differential expansion from neighboring metals. The supplier can then review whether the proposed geometry leaves enough room for edge treatment, joining, support or controlled clearance.

If the disc sits in a recessed pocket, specify the pocket dimensions, corner geometry and allowable contact zones. If it is bonded, brazed, coated or mechanically retained, identify the process family and the surfaces involved. Do not leave joint design to a generic purchase description. A marked-up assembly drawing, load direction sketch and service-cycle explanation usually provide more useful engineering context than a long list of unconnected material claims.

Inspection should match the risk

Inspection planning should reflect how the disc can fail in the application. Define the dimensional characteristics that matter most, the measurement references, sampling plan and treatment of edge chips or visible flaws. For flatness, parallelism, concentricity or hole location, identify the datum structure and measurement method. If visual inspection is important, provide an agreed viewing condition and a defect classification that both parties can interpret consistently.

Ask the supplier to identify inspection records available with the order and the point at which measurements are taken. When non-destructive examination, lot traceability or material verification is important, state that in the RFQ instead of assuming it is included. Buyers should review sample reports carefully: a certificate is useful only when its scope, part identity, revision and acceptance criteria correspond to the supplied discs.

Build a decision-ready RFQ

A clear RFQ package should include the controlled drawing, three-dimensional reference when useful, material family, application summary, annual or project quantity range if known, packaging environment and required submission format. Identify whether the request concerns prototypes, qualification pieces or repeat production, while avoiding assumptions about stock or minimum order terms. Ask for manufacturing limitations, proposed process steps and any deviations before placing technical approval.

Comparison should cover more than unit pricing. Review drawing compliance, material proposal, process control, inspection evidence, packaging protection, communication of deviations and ability to support design questions. Request a concise list of buyer-supplied information still needed to close the quotation. This approach keeps the disc inquiry focused on fit-for-purpose supply and gives engineering, purchasing and quality teams the same basis for evaluation.

Questions Before You Inquire

What should accompany a silicon nitride disc RFQ?

Include the controlled drawing, material designation or required material family, service environment, mating-part information, quantity context, inspection expectations and packaging needs. Mark critical dimensions and surfaces clearly. If the design is still developing, provide a neutral model and explain which features remain open for supplier review.

Can a disc include holes, recesses or edge features?

Potentially, subject to geometry, thickness, forming method, machining access and the required inspection approach. Show every opening, recess, chamfer and radius on the drawing. The supplier should review feature size, location, edge integrity and finishing sequence before confirming a quotation.

How should surface requirements be specified?

Identify the functional surfaces, desired finish or texture, flatness and parallelism requirements, and the measurement method where relevant. Avoid using a general phrase such as high quality. If bonding, sliding, sealing or electrical contact is involved, explain that function so the supplier can relate surface control to the assembly.

Are silicon nitride discs supplied from stock?

This page treats the component as a drawing-led RFQ item, not an inventory promise. Availability depends on the approved design, material route, quantity, finishing and inspection scope. Ask for a project-specific quotation that states assumptions, deviations, submission requirements and any commercial conditions separately from technical compliance.
