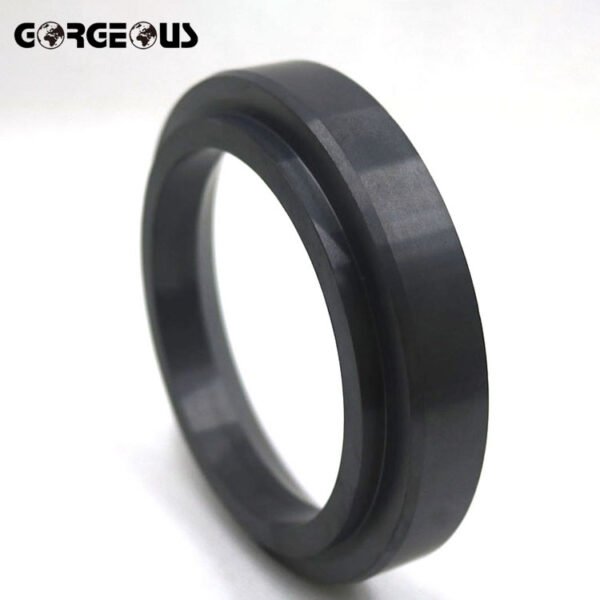

Silicon nitride ceramic ring

Define the ring’s role in the assembly

A silicon nitride ring may serve as a seal element, bearing-related interface, electrical separator, wear-facing component or precision spacer. Those roles can require very different edge details, contact surfaces and inspection priorities. The RFQ should identify the ring’s function, neighboring materials, installation method and whether the part is axially clamped, radially located, sliding, rotating or held without direct contact.

Describe the assembly sequence as carefully as the final operating state. Include mating-part drawings, contact bands, fastener or clamping arrangements, expected movement and any risk of chipping during installation. If the ring is used near a fluid, powder, vacuum or reactive atmosphere, state that environment clearly. These details help suppliers assess whether the proposed geometry and finishing route are appropriate for review.

Control geometry through a complete drawing

Ring dimensions should be communicated through a controlled drawing rather than an outer diameter and inner diameter alone. Identify thickness, steps, grooves, chamfers, radii, datum structure, concentricity relationships and any asymmetric features. Section views are valuable when the part includes sealing lips, recesses, counterbores or a nonuniform profile that cannot be understood from a simple top view.

State which dimensions are function-critical and which are reference values. The drawing should also define edge condition, surface symbols, geometric tolerances and inspection datums where needed. If the ring interfaces with a shaft, seat, electrode or ceramic assembly, show the mating envelope. A supplier can then respond to the intended design instead of making assumptions from a product label.

Compare material and processing choices

Silicon nitride is a material family, not a complete purchasing specification. Different grades, forming routes, sintering approaches and machining sequences can produce different behavior and different practical limits. Ask suppliers to identify the proposed material designation, manufacturing route and any relevant lot documentation. Compare those details against the ring’s loading, thermal cycling, electrical role, media exposure and surface-contact requirements.

Machining is often central to a ring’s final fit, especially where narrow clearances, flat seating or controlled concentricity matter. Request a clear description of which surfaces are formed, ground, lapped or otherwise finished, while avoiding acceptance of vague terms such as precision without a measurable definition. Where coating, joining or secondary treatment is involved, require it to be listed separately in the quotation.

Inspect the features that affect fit

Inspection should follow the drawing’s functional hierarchy. For a ring, that may include inner and outer diameters, thickness variation, flatness, parallelism, concentricity, edge integrity and visible damage at sealing or contact surfaces. The RFQ should identify the measurement method, datum references, sampling expectation and reporting format for each characteristic that can affect assembly or service.

Ask for representative inspection records or a proposed control plan when the component is development-critical. Visual inspection should not replace dimensional verification, and dimensional results should not obscure chips, cracks, grinding marks or contamination on working surfaces. If the ring will be assembled with preload or matched to another component, explain how fit will be checked at incoming inspection.

Build a decision-ready RFQ package

A strong RFQ package combines the latest drawing with quantities for quotation, prototype or production planning, intended application, packaging concerns and required documentation. It should distinguish design intent from confirmed acceptance criteria. Include revision status, sample availability, preferred measurement units, shipping constraints and the names of characteristics that require supplier feedback before order placement.

Request suppliers to identify assumptions, exclusions, manufacturability concerns and proposed alternatives. Ask how they would protect fragile edges, separate parts, prevent contamination and preserve traceability during handling. The objective is a comparable technical response: each quotation should explain the material, route, inspection scope and open questions without implying stock, fixed delivery or guaranteed service life.

Questions Before You Inquire

What information should accompany an RFQ for a silicon nitride ring?

Provide the controlled drawing, assembly context, mating-part information, application environment, quantity assumptions and required documentation. Mark critical dimensions, surfaces and inspection characteristics. If the design is still developing, identify open choices so suppliers can comment on manufacturability without treating an illustrative sketch as a final acceptance specification.

Can a standard ceramic ring be selected from a catalog description?

A catalog description may help establish the component category, but it rarely defines the fit, finish or inspection needed for a particular assembly. Use it as preliminary evidence only. Final comparison should be based on the drawing, material designation, processing route, tolerances and acceptance criteria relevant to the application.

Which ring features commonly need closer technical review?

Review the features that control seating, alignment, sealing or movement: bore and outside diameter relationships, thickness, flatness, parallelism, concentricity, edge transitions and surface condition. Also review installation loads and mating materials. The appropriate priorities depend on the assembly, so the RFQ should connect each requirement to its function.

How should incoming inspection be planned?

Separate dimensional, visual and documentation checks. Define the datums, instruments or methods, sampling approach and records required for critical features. Inspect working edges and contact surfaces for damage, contamination and unacceptable finish. The supplier and buyer should agree on interpretation before release, especially for fragile ceramic geometry.
