Technical Ceramics for Pumps and Valves, Sourced With Clarity

Sealing And Mating Faces

Sealing faces control leakage; scoring, edge chipping, and distortion are common failures.

Bearings And Wear Rings

Bearings and wear rings maintain alignment and clearance; failures include seizure, abrasive grooving, and clearance growth.

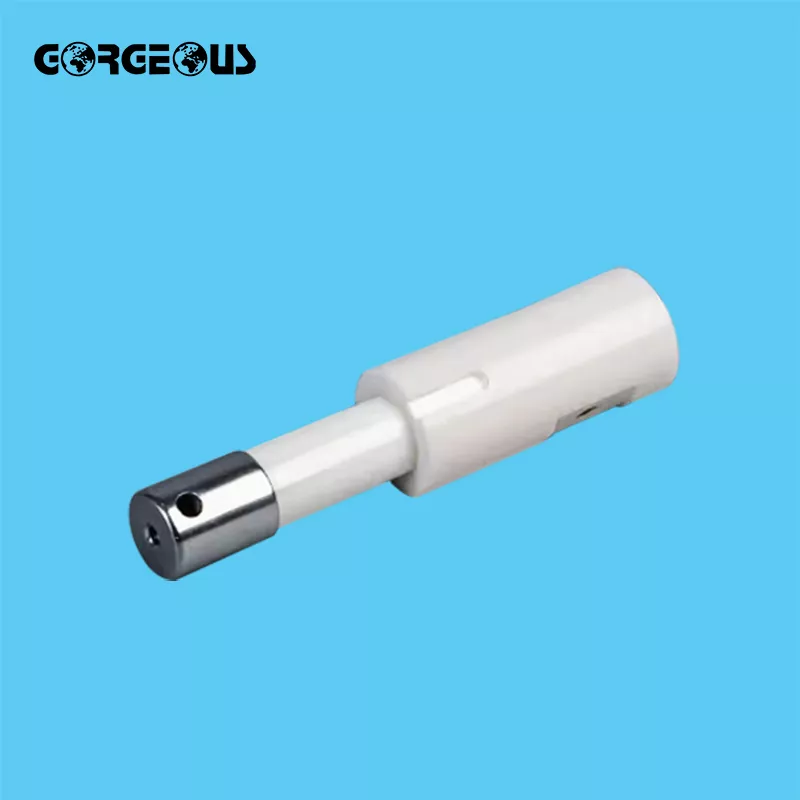

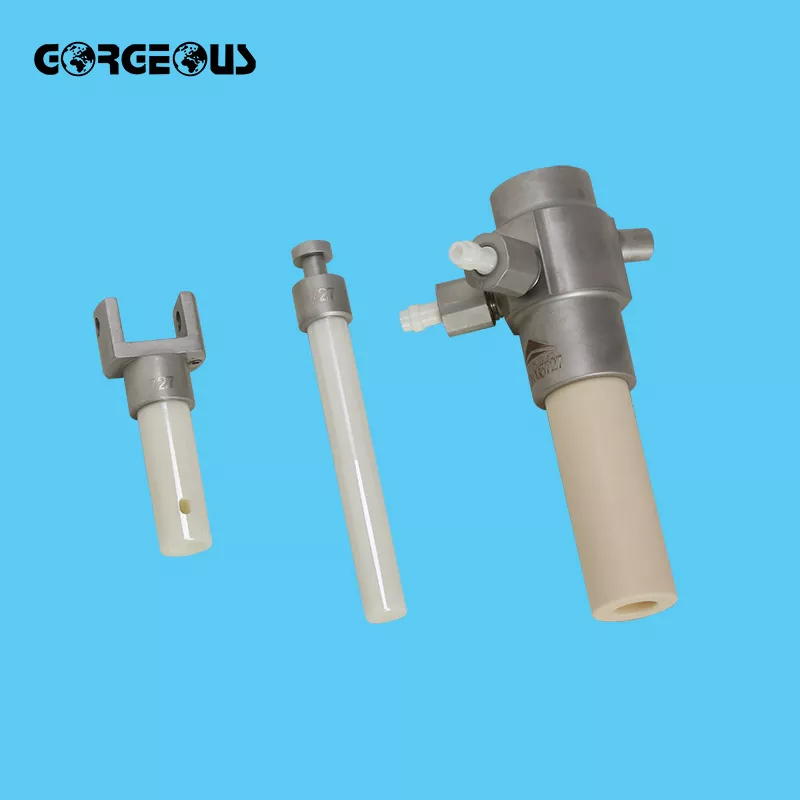

Pump Impellers And Plungers

Impellers and plungers transfer pressure or displacement; erosion, cavitation damage, fracture, and fatigue dominate.

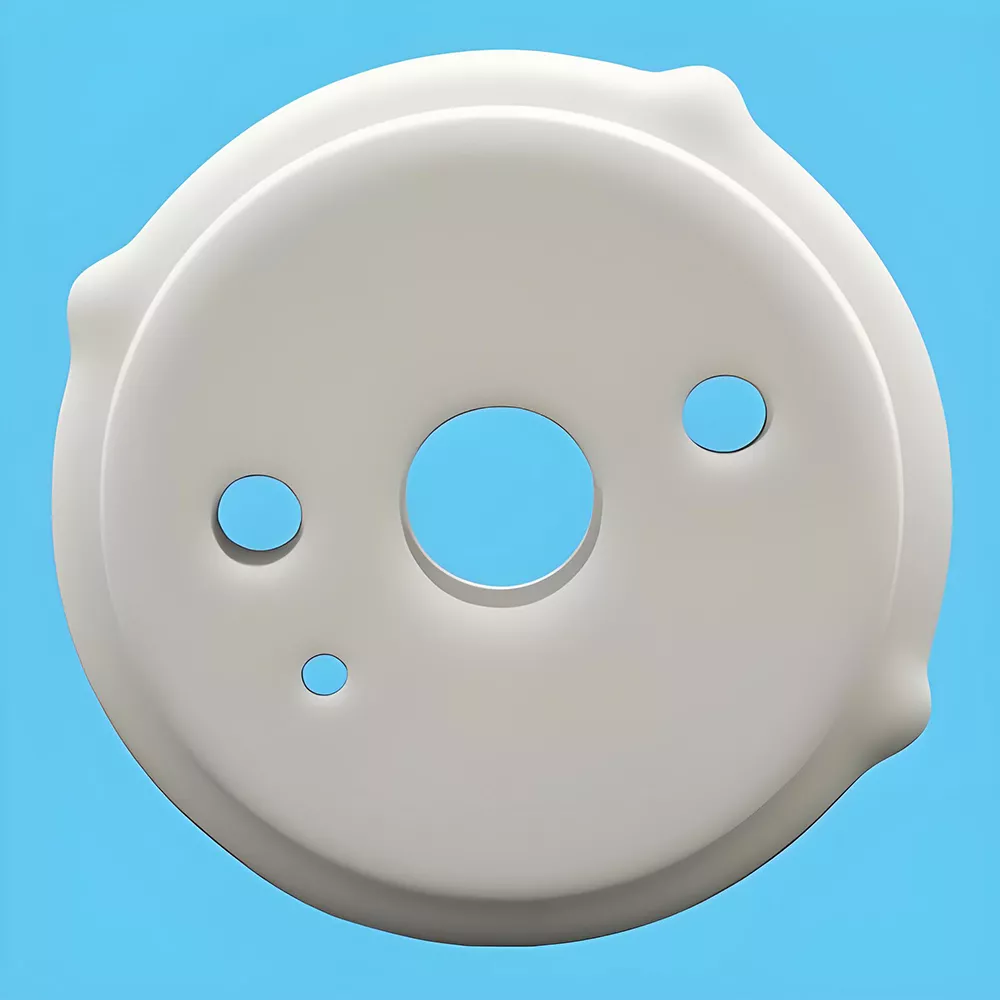

Valve Seats And Discs

Seats and discs shut off or meter flow; leakage, wire-drawing, impact chipping, and thermal distortion are typical failures. Ceramic pairs suit high pressure, abrasive particles, corrosive fluids, and frequent cycling.

Flow-Control Parts

Nozzles, orifices, sleeves, and liners shape velocity and flow; plugging, erosion, and dimensional drift reduce accuracy.

Ceramic-Coated Metal Components

Coated plungers and shafts retain a metal load-bearing core while protecting selected surfaces.

Economical Baseline: Alumina

Alumina combines high hardness, wear and chemical resistance with electrical insulation, making it economical for many standard components.

Thermal Shock And Wear

Silicon carbide suits aggressive wear, corrosive media and thermal cycling because high thermal conductivity supports thermal-shock resistance.

Toughness Under Mechanical Stress

Silicon nitride is valuable where impact, fracture toughness or centrifugal and reciprocating stress matters, while retaining strong thermal behavior.

Define Geometry And Interfaces

A drawing should identify critical dimensions, mating surfaces, holes, slots, flatness, concentricity, and tolerances. These features govern sealing, alignment, flow restriction, and assembly force.

Service conditions should add pressure, temperature, media, cycling, wear mode, and acceptance criteria. General material properties cannot replace grade-specific confirmation.

Match Forming Method To Volume

Dry pressing suits simpler shapes and established production volumes; injection molding supports intricate repeated parts but requires tooling. Extrusion fits continuous tubes or rods, while isostatic pressing supports larger or more uniform sections.

Machining and rapid prototypes reduce tooling commitment for early validation, but may increase unit cost or lead time. Select the route after geometry, quantity, and dimensional risk are known.

Control Finishing And Fit

Diamond grinding establishes dimensions; lapping and polishing improve flatness and mating surfaces, especially where leakage or friction matters. Tighter tolerances and finer finishes usually increase processing and inspection requirements. Specify finish by functional surface, not appearance alone.

Evaluate Coatings And Metallization

Ceramic coatings can add wear, corrosion, electrical, or thermal protection to a substrate, while metallization enables joining or electrical connection. Each introduces adhesion, thickness, thermal-expansion, and edge-coverage questions. Request coating material, process, thickness range, bond criteria, and post-finish inspection. pdf.

Material Integrity

Material grade, density, and porosity affect strength, chemical resistance, wear, and leak paths. Uncontrolled pores can accelerate permeation, seizure, or premature fracture.

Fit And Surface Control

Dimensional tolerances, flatness, surface roughness, and edge condition govern sealing, friction, wear, and chipping. Mating compatibility must account for counterface material, thermal expansion, running clearance, and assembly load.

Service And Traceability

Thermal-shock resistance should match startup, shutdown, pressure, and temperature cycling; mismatch can cause cracking. Cleanliness prevents abrasive contamination, while inspection traceability links dimensions, surfaces, defects, and release decisions to a lot.

Application And Material Expertise

One RFQ should state media, temperature, pressure, speed, duty cycle, loads, mating materials, annual volume, tolerances, and validation requirements.

• Request application references, material data, and documented design assumptions.
• Confirm open questions before treating a quotation as a specification.

Process And Prototype Capability

Three process areas require review: forming method, sintered-part machining, and surface finishing. Capability should match geometry, quantity, dimensional control, flatness, and mating-surface requirements.

Prototype support is useful when fit, sealing, wear, or thermal behavior remains uncertain. Ask how prototypes are made, measured, revised, and transferred into series production.

• Request representative inspection reports and prototype lead times.
• Check capacity, tooling ownership, minimum order constraints, and repeatability.

Quality, Delivery, And Evidence

Four evidence categories matter: quality-system scope, test methods, production capacity, and lead-time history. Request certificates, control plans, test definitions, traceability, nonconformance handling, and sample documentation.

Separate verified records from sales language by defining acceptance criteria and validation responsibility. Communication should identify revision control, response ownership, delivery milestones, and commercial assumptions.

• Audit or verify claims before approving production.
• Require written confirmation of documentation and inspection deliverables.

Specify The Part, Not Just Material

One material name does not define a component: state geometry, load, speed, temperature, wear mode, grade, and inspection criteria. Alumina, silicon carbide, and silicon nitride suit different duty profiles.

Check Heat, Impact, And Interfaces

pdf). Record fits, surface finish, hardness, clearance, and alignment for every mating surface. A hard ceramic against an unsuitable counterface can accelerate wear or damage sealing performance.

Include Chemistry, Cost, And Validation

Fluid chemistry must include concentration, temperature, solids, cleaning agents, and transient exposure; ‘corrosion resistant’ is not a complete acceptance criterion. Lifecycle cost includes downtime, replacement labor, rejects, and inspection—not piece price alone.

Define Duty And Failure Mode

Stage 1 records fluid, pressure, temperature, speed, contamination, mating parts, failure evidence, quantity, and replacement context.

Screen, Design, And Prove

Stage 3 screens suitable ceramic families against wear, chemistry, thermal cycling, loads, geometry, and cost; the decision belongs to the application, not material name alone.

Qualify And Control Production

Stages 6–7 use pilot quantities to verify repeatability, packaging, documentation, and assembly; OEMs, builders, distributors, and replacement programs should approve the supplier and inspection record.

Stage 8 monitors series production through lot traceability, sample checks, nonconformance review, and formal change control. No material, process, geometry, or supplier change should proceed without reapproval.
