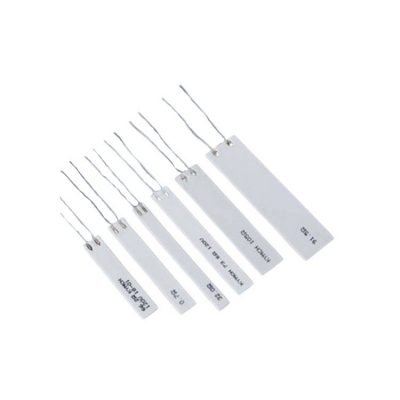

Metallized beryllium oxide ceramic shaped plates

Define the ceramic plate geometry

Start with the controlled geometry rather than a catalogue description. Identify the overall profile, planar faces, openings, steps, radii, edge treatments and datum scheme on the drawing. State which features are critical to mounting or electrical isolation, and distinguish reference dimensions from acceptance dimensions. If the part is shaped from a standard plate concept, explain the final machined or formed profile so quotation assumptions do not replace design intent.

A useful RFQ also describes the mating assembly around the plate. Show contact surfaces, fastener or clamping locations, clearance zones, expected loading direction and any interfaces that could chip the ceramic. Ask the supplier to identify manufacturability concerns, likely inspection datums and any geometry that may require clarification. This keeps the quotation focused on the actual component rather than an undefined ceramic blank.

Specify metallization as an interface

Metallization should be treated as part of the component specification, not as a decorative finish. Define the metallized regions, edge termination, keep-out zones, layer sequence if known, joining method and the surfaces that must remain uncoated. Where the final process is still open, describe the electrical and assembly purpose, then ask for proposed options and the assumptions behind each option.

The drawing should indicate coverage boundaries, registration to ceramic features, surface-finish expectations and any areas where visual variation is unacceptable. Request inspection of adhesion or bond integrity when relevant to the joining process, while leaving the acceptance method for technical agreement. Confirm whether metallization must support soldering, brazing, contacting or another assembly operation, because each route changes the information needed for comparison.

Compare material and process choices

For a beryllium oxide plate, ask suppliers to identify the ceramic grade or material designation they would quote and to separate nominal material information from verified batch documentation. Do not rely on the product name alone when the application depends on insulation, heat transfer, dimensional stability or compatibility with a joining process. Request a clear statement of what is standard, what is engineered and what remains subject to drawing review.

Compare proposals across the complete process chain: shaping, sintering, finishing, metallization, cleaning and inspection. Ask whether the quoted route is appropriate for the profile and metallized pattern, and whether process-related distortion, edge damage or surface defects require special controls. If the part enters a regulated or safety-sensitive assembly, list the documentation and handling expectations in the RFQ without assuming that any certification is included.

Plan inspection around function

Inspection should connect directly to how the plate is installed and used. Define dimensional checkpoints for mounting and alignment, flatness or surface relationships where contact depends on them, and visual criteria for chips, cracks, contamination and metallization discontinuities. Identify which characteristics require measurement records and which can be accepted by visual review, so suppliers can quote a realistic inspection package.

Ask for a proposed control plan covering incoming material identification, ceramic-body inspection, profile verification, metallization coverage and final packaging. Where electrical or thermal characteristics matter, specify the test method, sampling expectation and reporting format only after the engineering team agrees what evidence is meaningful. This avoids vague requests for guaranteed performance and creates a comparable basis for supplier review.

Prepare a complete RFQ package

Include the latest drawing, three-dimensional data when useful, application description, annual or project quantity context, target assembly process and known environmental conditions. Mark all open decisions, especially metallization, joining, surface finish and inspection. A short list of ranked critical characteristics helps the supplier focus questions on risks that could affect fit, electrical isolation or heat-transfer interfaces.

Request quotation assumptions, exclusions, manufacturability comments, sample or first-article expectations and proposed inspection documentation. Ask the supplier to identify any requirement that cannot be confirmed from the supplied information. Before approval, compare the technical response against the drawing revision and ensure that the quoted component is a shaped, metallized ceramic plate with the intended interfaces, not merely an unprocessed substrate.

Questions Before You Inquire

What should the drawing show for a metallized ceramic plate?

Show the complete ceramic profile, datums, critical dimensions, metallized areas, keep-outs, edge conditions, mating interfaces and inspection requirements. If the metallization process is undecided, state the functional purpose and required coverage while asking suppliers to identify their proposed process and assumptions.

How should metallization be specified when the joining method is undecided?

Define the areas that must conduct, bond or remain clear, plus any registration and finish expectations. Then describe the intended assembly operation and ask for technically justified options. Require suppliers to state compatibility, inspection methods and exclusions instead of assuming a standard coating is suitable.

Which inspection evidence is useful for shaped BeO plates?

Useful evidence may include material identification, profile and datum measurements, surface and edge inspection, metallization coverage, and agreed bond or electrical tests. The RFQ should define methods and sampling after the application risks are understood, rather than requesting unspecified certificates or performance guarantees.

What safety information should accompany a beryllium oxide RFQ?

Provide the intended handling, machining and assembly context, and ask suppliers to identify relevant processing and packaging controls. Request applicable safety documentation and handling instructions for the supplied condition. Keep workplace procedures and regulatory requirements explicit, rather than assuming they are covered by the component name.
